Compact Precision for Controlled Environments
The ProGrowth Mini Series delivers laboratory-grade environmental control in a compact footprint, giving research teams reliable temperature, humidity, CO₂, and full-spectrum LED lighting without dedicating a large space. Engineered for efficiency and ease of use, the Mini Series supports reproducible results for early-stage experiments, teaching laboratories, and small-scale plant and organism studies.

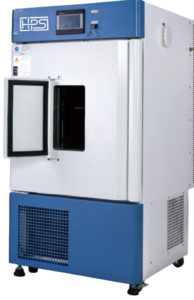

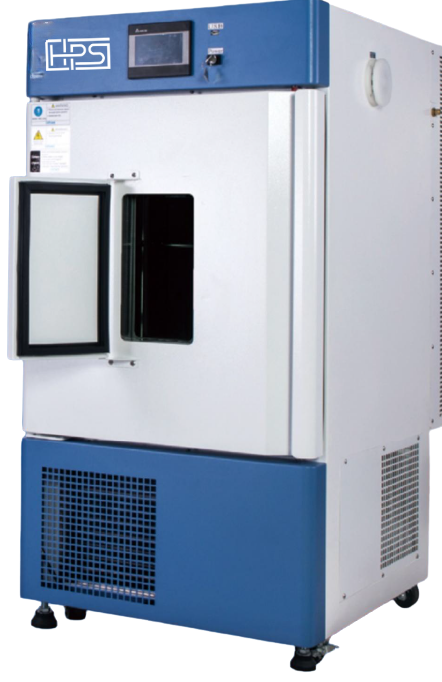

Mini XS – 130 L (chassis 701)
- Growth area: 0.22 m² (2.42 ft²) per tier
- Growth height: 0.19 m (0.62 ft) per tier — 2 tiers
- Internal: W500 × D470 × H550 mm · External: W600 × D860 × H1160 mm
The most compact chamber in the range, the Mini XS is built for precise control in tight laboratory space — well suited to early-stage plant research, seed germination trials, and controlled small-organism studies on the benchtop.

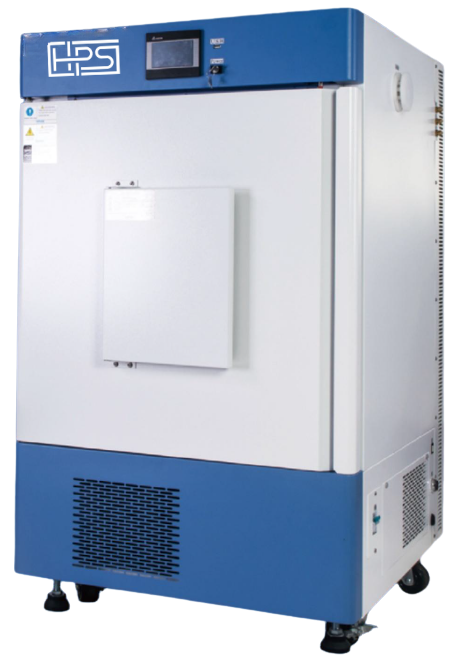

Mini – 240 L (chassis 721)
- Growth area: 0.38 m² (4.15 ft²) per tier
- Growth height: 0.22 m (0.73 ft) per tier — 2 tiers
- Internal: W700 × D570 × H620 mm · External: W800 × D930 × H1360 mm
The Mini balances a compact footprint with greater usable capacity, supporting seed germination, Arabidopsis and herb growth, and routine small-scale plant research with programmable, uniform conditions.
Specifications
| Temperature range | 0°C to +60°C (with low-temperature option); +10°C to +45°C with lights on |
| Temperature fluctuation / uniformity | ±0.3°C @ 37°C / ±0.5°C @ 37°C |
| Temperature accuracy | ±0.1°C |
| Humidity range | 50–85% RH standard (50–95% RH extended) |
| Humidity uniformity / accuracy | ±2% / ±0.1% |
| Humidifier | Ultrasonic |
| CO₂ control | Ambient to 5000 ppm (optional up to 5% or 20%) |
| Lighting | ProLED SUN LIGHT – Z1N, Z4WN, Z4N, Z41N; up to 150 µmol/m²/s |
| Light control | RGB / 8-channel / PAR control |
| Controller (HMI) | 7.0″ touchscreen, data exportable |
| Programs | 50 programs × 24 steps/day; optional long-term mode (8 programs) |
| Alarms | Temperature + humidity + CO₂ tracking alarms |
| Connectivity | VNS (local) + WAS (web); USB export; LAN |
| Cooling | Air / water-cooled, CFC-free refrigerant |
| Interior / exterior | Stainless steel / powder-coated steel |
| Insulation | PUF |
| Door | Free-condensation observation window |
| Growth height | Adjustable in 2.5 cm steps |
| Safety | Mechanical & compressor over-temp, overpressure, over-current, delay-start protection; onboard diagnostics |
| Power | 1P+E 220V ±10% 50Hz (customisable for local regulations) |
Options & Accessories
- Temperature: temperature sensor · low-temperature setup
- Humidity: humidity sensor · humidity monitoring
- CO₂: CO₂ sensor · flask injection · CO₂ up to 5% or 20%
- HMI: VNC remote control · WiFi accessibility · long-period schedule
- Hardware: wire tray · reinforced wire tray · perforated stainless · access port (for cable) · steel tray · inner socket · anti-microbial interior
Applications
Seed germination · Arabidopsis and herb growth · tissue culture · small-scale plant research · algae culture · small insect rearing (e.g. Drosophila) · educational laboratory experiments.
FAQ
Q: What is the smallest plant growth chamber HiPro offers? A: The ProGrowth Mini XS (130 L) is the most compact model, offering full programmable temperature, humidity, CO₂, and LED control in a benchtop footprint — ideal for labs with limited space.
Q: Can the Mini Series control light spectrum and intensity? A: Yes. Both models pair with ProLED SUN LIGHT (Z1N, Z4WN, Z4N, Z41N) delivering up to 150 µmol/m²/s with RGB / 8-channel / PAR control.
What is next?
Need controlled-environment precision in a compact footprint? Add the ProGrowth Mini Series to your inquiry and our team will help you configure the right model for your research.
