Versatility and Performance at Scale
The ProGrowth Standard Series is the backbone of controlled-environment research — medium to large-capacity chambers with robust, uniform control of temperature, humidity, CO₂, and full-spectrum LED lighting. Designed for flexibility, the Standard Series adapts across five capacities to suit everything from routine daily experiments to large-scale crop trials, while maintaining the uniformity, scalability, and reliability that reproducible research demands.
Standard Compact – 370 L (chassis 400) — NEW
- Growth area: 0.27 m² (2.96 ft²) per tier · Growth height: 0.35 m (1.17 ft) per tier — 2 tiers
- Internal: W550 × D520 × H1300 mm · External: W650 × D860 × H1950 mm
An upright, single-column reach-in chamber offering generous vertical growth height in a slim footprint. The extra headroom suits taller specimens and staged growth studies where floor space is limited.
Standard – 470 L (chassis 740)
- Growth area: 0.40 m² (4.30 ft²) per tier · Growth height: 0.30 m (1.00 ft) per tier — 3 tiers
- Internal: W700 × D590 × H1145 mm · External: W900 × D950 × H1950 mm
The versatile mid-sized workhorse for general-purpose plant growth and controlled-environment research, with reliable temperature control, uniform lighting, and flexible shelf configuration for everyday laboratory use.
Standard Plus – 580 L (chassis 600) — NEW
- Growth area: 0.44 m² (4.82 ft²) per tier · Growth height: 0.34 m (1.13 ft) per tier — 3 tiers
- Internal: W770 × D600 × H1265 mm · External: W900 × D1040 × H1950 mm
A higher-capacity step up from the Standard, adding usable growth area per tier for greater sample throughput without a larger external footprint — a strong fit for expanding research programmes.

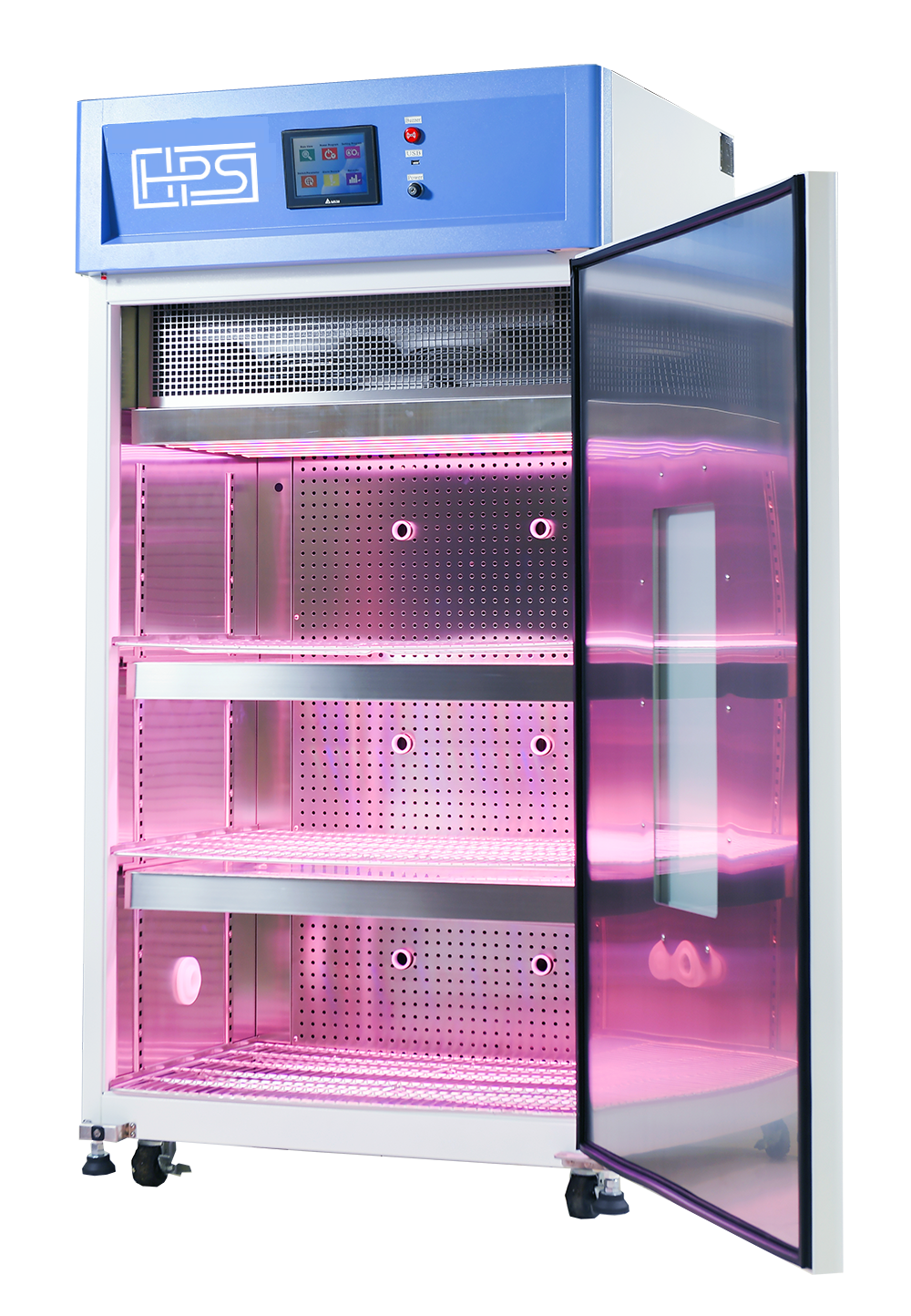

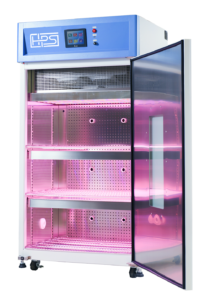

Standard XL – 800 L (chassis 1200)
- Growth area: 0.64 m² (6.88 ft²) per tier · Growth height: 0.33 m (1.08 ft) per tier — 3 tiers
- Internal: W950 × D690 × H1120 mm · External: W1070 × D900 × H1950 mm
Increased internal volume for larger sample sizes and more complex experiments, ideal for research that needs higher throughput without compromising environmental precision.

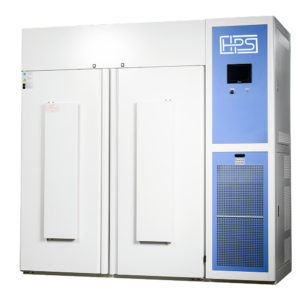

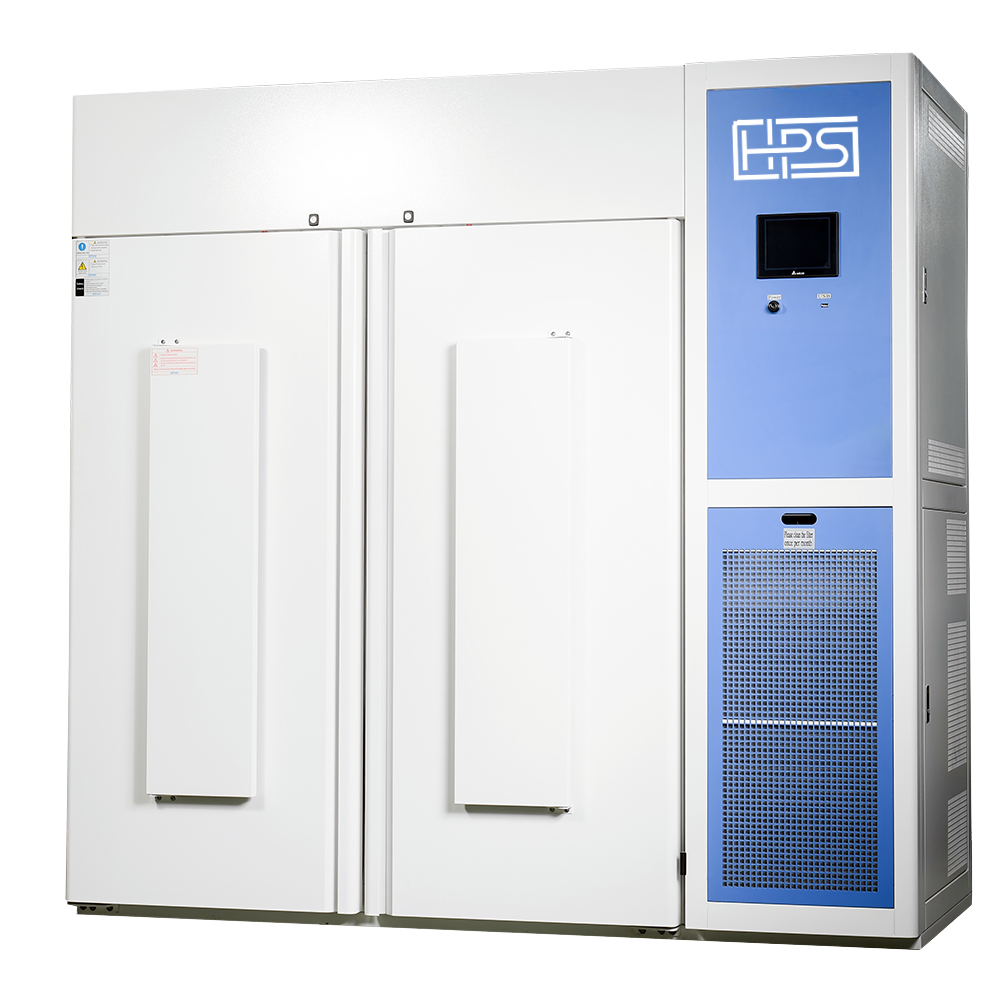

Standard XXL – 1400 L (chassis 1300)
- Growth area: 0.95 m² (10.25 ft²) per tier · Growth height: 0.41 m (1.33 ft) per tier — 4 tiers
- Internal: W1410 × D690 × H1450 mm · External: W2050 × D925 × H2075 mm
The largest chamber in the Standard Series, built for large-scale experimental setups, tall or dense growth, and high-density, high-volume research with robust airflow and consistent environmental control.
Specifications
| Temperature range | 0°C to +60°C (with low-temperature option); +10°C to +45°C with lights on |
| Temperature fluctuation / uniformity | ±0.2°C @ 20°C / ±0.5°C @ 20°C |
| Temperature accuracy | ±0.1°C |
| Humidity range | 50–85% RH standard (50–95% RH extended) |
| Humidity uniformity / accuracy | ±2% / ±0.1% |
| Humidifier | Ultrasonic |
| CO₂ control | Ambient to 5000 ppm (optional up to 5% or 20%) |
| Lighting | ProLED SUN LIGHT – Z1N, Z4WN, Z4N, Z41N; >150 µmol/m²/s |
| Light control | 0–100% programmable |
| Controller (HMI) | 7.0″ touchscreen, data exportable |
| Programs | 50 programs × 24 steps/day; optional long-term mode (8 programs) |
| Alarms | Temperature + humidity + CO₂ tracking alarms |
| Connectivity | VNS (local) + WAS (web); USB export; LAN |
| Cooling | Air / water-cooled, CFC-free refrigerant |
| Interior / exterior | Stainless steel / powder-coated steel |
| Insulation | PUF |
| Door | Heated glass |
| Growth height | Adjustable in 2.5 cm steps |
| Safety | Mechanical & compressor over-temp, overpressure, over-current, delay-start protection; onboard diagnostics |
| Power | 1P+E 220V ±10% 50Hz (customisable for local regulations) |
Options & Accessories
- Temperature: temperature sensor · low-temperature setup
- Humidity: humidity sensor · humidity monitoring
- CO₂: CO₂ sensor · flask injection · CO₂ up to 5% or 20%
- HMI: VNC remote control · WiFi accessibility · long-period schedule
- Hardware: wire tray · reinforced wire tray · perforated stainless · access port (for cable) · steel tray · inner socket · anti-microbial interior
Applications
General plant research · leafy greens and vegetable seedlings · crop research (rice, wheat) · crop breeding programmes · plant–insect interaction studies · fungal and pathogen research · greenhouse simulation · phytotron and multi-tray experimental setups.
FAQ
Q: Which ProGrowth Standard model suits large-scale crop trials? A: The Standard XXL (1400 L, 4 tiers) offers the largest capacity for tall or dense growth and high-volume research; the Standard XL (800 L) suits medium-scale throughput.
Q: What temperature and humidity range do the chambers cover? A: 0°C to +60°C (with the low-temperature option; +10°C to +45°C with lights on) and 50–95% RH, with CO₂ control from ambient to 5000 ppm.
What is next?
Scaling up your controlled-environment research? Add the ProGrowth Standard Series to your inquiry and our specialists will help you match capacity and configuration to your programme.
