Hi! Recirculating Chiller Series

Hi! Recirculating Chillers control the temperature of external laboratory equipment. LC models heat and cool, from 0–99.9 °C to −80–80 °C on the LC-80; TLC models provide high-capacity cooling with 0 °C–RT or −20 °C–RT ranges and bath volumes up to 250 L.

Key features

• LC: heating and cooling for external temperature control; LC-80 covers −80 to +80 °C
• TLC: cooling-only, 10 to 250 L bath volume, two range options
• PID control with ±0.1 °C accuracy and high/low alarms
• Proportional cooling capacity control for energy saving

Why choose the Hi! Recirculating Chiller Series?

Every Hi! Science Essentials bath is supplied, installed and supported locally by Hi Pro Scientific, with calibration and preventive maintenance available.

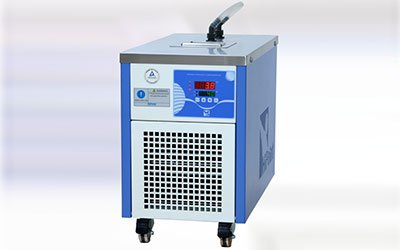

LC Series – heating and cooling

Specification	LC-06	LC-10	LC-18	LC-80
Temperature range	0 – 99.9 °C	0 – 99.9 °C	0 – 99.9 °C	−80 – 80 °C
Temperature control accuracy	±0.1 °C	±0.1 °C	±0.1 °C	±0.1 °C
Controller	PID microprocessor	PID microprocessor	PID microprocessor	PID microprocessor
Alarm	High / low temperature alarm	High / low temperature alarm	High / low temperature alarm	High / low temperature alarm
Water circulation	Built-in pump, inner and outer recirculation	Built-in pump, inner and outer recirculation	Built-in pump, inner and outer recirculation	Built-in pump, inner and outer recirculation
Pump flow / pressure	6 L/min @ 0.25 bar	6 L/min @ 0.25 bar	6 L/min @ 0.25 bar	6 L/min @ 0.25 bar
Heating capacity	1,300 W	1,300 W	1,500 W	1,000 W
Cooling capacity (compressor)	1/5 HP	1/4 HP	1/2 HP	1 HP / 1 HP (cascade)
Overall dimensions (W×D×H)	330 × 530 × 670 mm (±50 mm)	370 × 585 × 680 mm	420 × 680 × 740 mm	1,100 × 850 × 900 mm
Bath volume	6 L	10 L	Contact us	18 L
Interior material	Stainless steel #304	Stainless steel #304	Stainless steel #304	Stainless steel #304
Exterior material	Coated steel	Coated steel	Coated steel	Coated steel
Cover	SUS flat cover	SUS flat cover	SUS flat cover	SUS flat cover
Safety device	Overheat / overload protection	Overheat / overload protection	Overheat / overload protection	Overheat / overload protection
Power	Configured for local supply (specify at order)	Configured for local supply (specify at order)	Configured for local supply (specify at order)	Configured for local supply (specify at order)

TLC Series – cooling only

Specification	TLC-10A	TLC-30A	TLC-50A	TLC-250
Temperature range	0 °C – RT or −20 °C – RT	0 °C – RT or −20 °C – RT	0 °C – RT or −20 °C – RT	0 °C – RT or −20 °C – RT
Temperature control accuracy	±0.1 °C	±0.1 °C	±0.1 °C	±0.1 °C
Controller	PID microprocessor	PID microprocessor	PID microprocessor	PID microprocessor
Alarm	High / low temperature alarm	High / low temperature alarm	High / low temperature alarm	High / low temperature alarm
Water circulation	Built-in pump, inner and outer recirculation	Built-in pump, inner and outer recirculation	Built-in pump, inner and outer recirculation	Built-in pump, inner and outer recirculation
Pump flow / pressure	20 L/min @ 1 bar	15 L/min @ 1 bar	40 L/min @ 3.5 bar	60 L/min @ 3.5 bar
Cooling capacity	1.2 kW	1 HP	Contact us	Contact us
Overall dimensions (W×D×H)	450 × 610 × 950 mm (±50 mm)	450 × 530 × 1,210 mm (±50 mm)	685 × 700 × 1,350 mm (±50 mm)	1,540 × 1,040 × 1,660 mm (±50 mm)
Bath volume	10 L	30 L	50 L	250 L
Interior material	Stainless steel #304	Stainless steel #304	Stainless steel #304	Stainless steel #304
Exterior material	Coated steel	Coated steel	Coated steel	Coated steel
Cover	SUS flat cover	SUS flat cover	SUS flat cover	SUS flat cover
Power	Configured for local supply (specify at order)	Configured for local supply (specify at order)	Configured for local supply (specify at order)	Configured for local supply (specify at order)

Applications

• Cooling rotary evaporators, reactors and condensers
• Temperature control of analytical instruments
• Heating and cooling external jacketed vessels (LC)

Related products

Hi! Water Bath Series · Hi! Circulating Water Bath Series · Hi! Stirrer Water Bath Series

FAQs

Q: What power supply does it need?
A: Units are configured for the local electrical supply; please specify your voltage when ordering.

Q: Do you offer calibration and service?
A: Yes. Hi Pro Scientific provides installation, temperature calibration and preventive maintenance across Singapore, Malaysia and Indonesia.

Installation, qualification and support

Hi Pro Scientific supplies, installs and commissions every unit, with IQ/OQ qualification and scheduled calibration and preventive maintenance available across Singapore, Malaysia and Indonesia.

Download the brochure (PDF)

Request a quote

Talk to our team about the Hi! Recirculating Chiller Series: configuration, lead time and pricing. Email info@hiproscientific.com or WhatsApp +65 8163 3185.
